Main Features

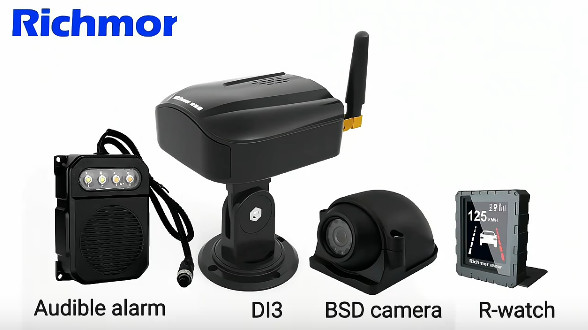

1.Mini 3CH HD professional driving recorder
2.AI-Powered, ADAS, DSM All-in-one terminal
3.GPS/BD+AGPS positioning, 4G remote transmission
4.Alarm video, photos upload recorder, Data Analysis
5.TTS, WIFI hotspot, OTA upgrade, etc.
6.Suitable for Bus,coach, taxi, truck, etc.
Main Functions
1.DSM camera also main host terminal, 4 channels HD video inputs with H.264 compression mode.
2.Strong AI chip with 1.0T computing ability, neuron logical analysis mode, deep learning algorithm.

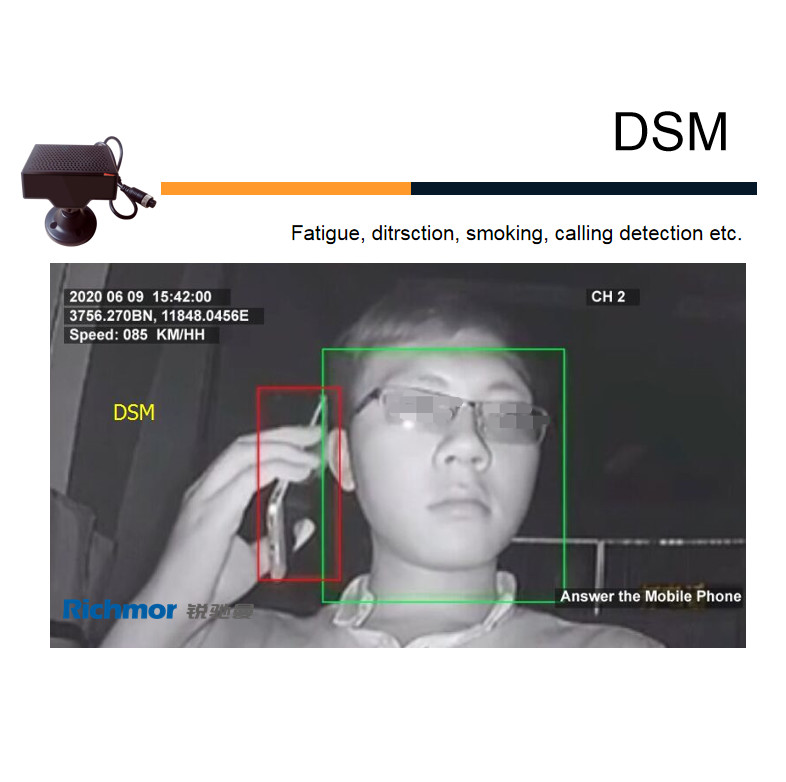

DSM [Driver State Monitor]: give reminder to driver, send event data and even evidence to platform for
behaviors like: fatigue driving (eye close, yawning), distraction, smoking, making a call, etc.
4. Facial recognition: recognize driver for checking attendance and avoiding unauthorized/certificated driver to
take the drive.

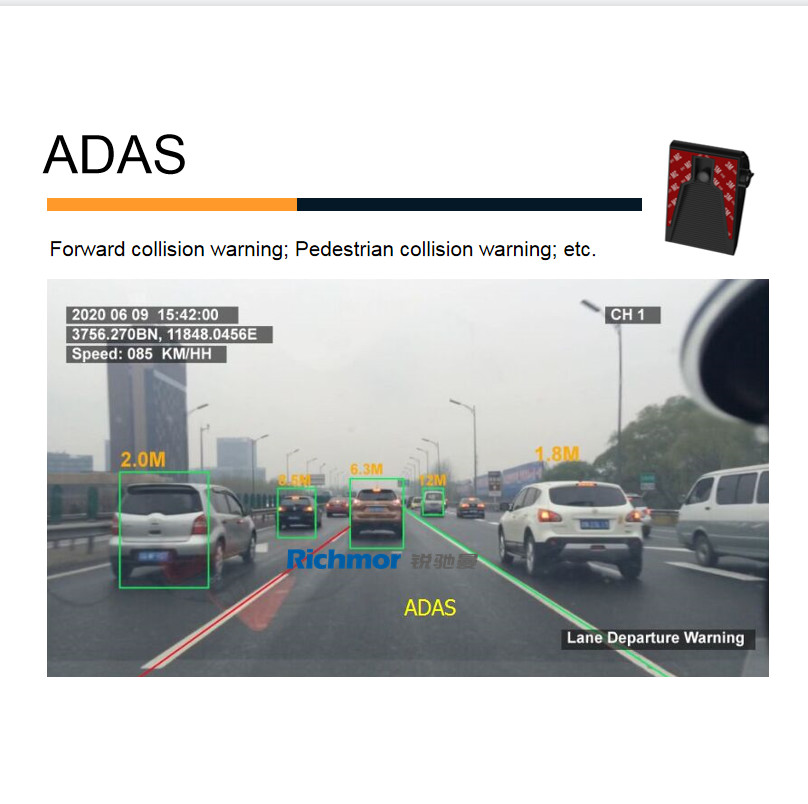

5. ADAS [Advanced Driving Assistant System]: Support FCW(Forward collision warning), HWM(Headway
monitoring), LDW(Lane departure warning), etc.
6. Integrated high-sensitivity 1MIC, 1ch audio input to optional recording and intercom ; integrated 1 speaker,
TTS audio broadcast and efficient warning prompts.
7. Built-in G-SENSOR module, realize automatic alarm upload of abnormal vibration, rollover, impact and
sudden braking
8. Support GPS/BD tracking module to realize the management of speed, position, time and route.
9. Support positioning module abnormality and antenna abnormality alarm
10. Integrated 4G, WIFI module, for remote monitoring management and system configuration, maintenance.
11. Support multiple platforms, web and app for monitoring at any time, anywhere.
*BSD function and Driver physiological state detection are under development

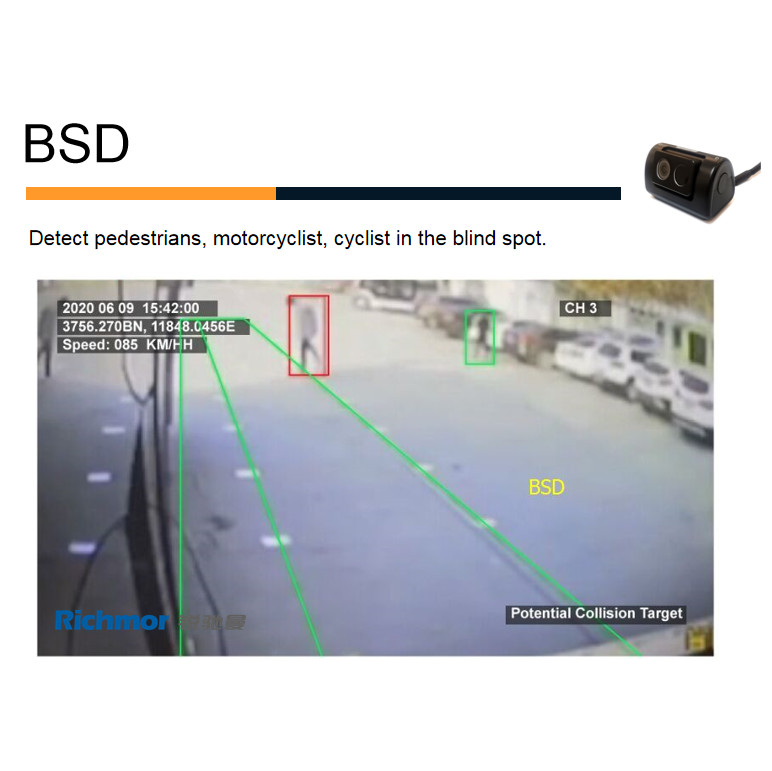

12. *BSD [Blind Spot Detection]: Detection pedestrian, bicycler or motorcycle the blind area of HGV.
13. *Driver physiological state detection: High accurate mode for fatigue driving detection. Adopts
physiological detection radar to monitor driver’s heartbeats and breathe without contact. Can give early alarm to
abnormal body state of driver to avoid serious accidents.
Product Parameter
| Operation system | Linux |
| Network type | 2G,3G,4G |
| RAM | 2GB |
| DSM cam | HD 720P cam |
| Other cam | HD 720P cam |
| Position | Support dual module GPS+BD；Precision ≤10m(95%)； starting time,warm reboot ≤5s, cold reboot ≤45s |
| WiFi | 2.4G；IEEE 802.11b/g/n |
| Speaker | 8Ω, 1W, with audio cavity |
| Microphone | Single microphone, support echo and noise elimination |
| G-sensor | 3-axis acceleration sensor |
| Loop denoising | Compatible with hardware loop denoising |
