2TB HDD DVR 4CH 4G GPS WIFI MDVR Vehicle Camera Remote Monitor Solution for School Bus

Place of Origin : Guangdong, China

Brand Name : Richmor

Model Number : RCM-MDR7204-001

Resolution : 1080P/720P/D1/HD1/CIF

TV system : PAL or NTSC

Compression : H.264 4channel

Certification : CE FCC RoHS

Video input : 8CH , 4CH

storage : Up to 2TBHDD & 128 SD card

Monitoring Device : PC/Mobile Phone

Feature : 4G GPS WIFI

IP Camera Input : 4CH , 1CH ,8CH

Keyword : Hybrid DVR

Packaging Details : Standard giftbox (Richmor/Neutral)

Price : $225.00/units 1-49 units

Contact Now

2TB HDD DVR 4CH 4G GPS WIFI MDVR Vehicle Camera Remote Monitor Solution for School Bus

Richmor mobile dvr 4 channel ahd dvr

school bus mobile dvr



PRODUCT DESCRIPTION
Resolution  4CH 1080P AHD Full real-time recording
 Module G-Sensor built in, GPS /3G/4G /WIFI (5.8G or 2.4G )Optional
Storage Support 1*2TB HDD + 1*128GB SD cards
 Alarm I/O 8CH Alarm input,2CH Alarm output

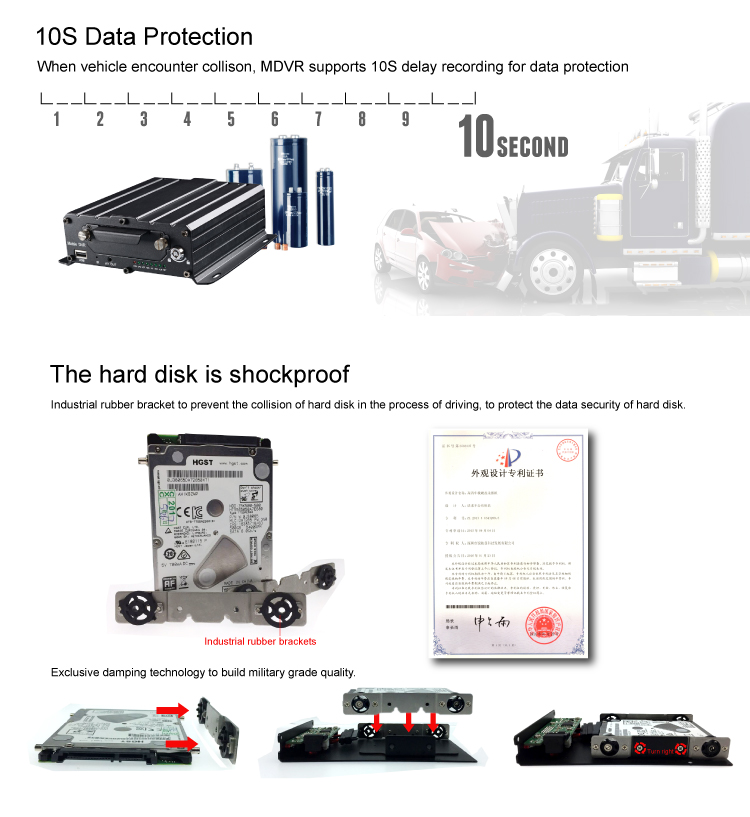

ACC Delay 10 seconds delay pow-off for data protection
 Voltage  8V-36V Wide range voltage power supply



 2TB HDD DVR 4CH 4G GPS WIFI MDVR Vehicle Camera Remote Monitor Solution for School Bus



2TB HDD DVR 4CH 4G GPS WIFI MDVR Vehicle Camera Remote Monitor Solution for School Bus

Detailed specification  was listed as follows for checking, please contact us we'll do our best to cooperate.



Item

Parameter

OS

Linux

Language

Chinese/English/Others(can be customized)

Video Compression

H.264

Operation Interface

OSD menu



Video Input

Support 4 CH Full real-time AHD1080P




Video Record System





Video Output

1 CH composite video output

Display

1/2/4 CH full screen

Signal system

PAL/NTSC (PAL @100Frame, NTSC@120 Frame

Resolution

Support 4 CH Full real-time AHD 720P

Record Format

Synchronized A/V recording


Audio


Audio Input

4 CH

 Audio Output

2 CH

Compression

G.726

Alarm

Input

9 CH
Output  2 CH
  Storage

Support 2.5" 2TB HDD & 128GB SD Card

Communication Port

3CH RS232 / 2CH RS485

G-sensor

Built in, support 3 Axis Motion Detection with user set ranges , for X,Y and Z coordinates

Wireless communications

GPS /3G /4G /WIFI optional

 GPS

GPS /Glonass

Video Playback

Video Search

Search video by Record Time/ Type etc

Playback

A/V,GPS,Map view,Speed,G-sensor,video files available for playback on PC.

CMS

Wireless(require Wi-Fi or cellular), real-time monitoring .GPS and alarm etc

Operating Voltage

Voltage Input

8V ~ 36V DC

Voltage Output

12V @1.2A 4 CH, with IR

12V @0.9A 2 CH, with IR

Power -off Protection

All video information can be saved automatically when the power cut off, and make sure that all the files can not be damaged

UPS

External UPS battery optional, support  24 hours monitoring

Other



Operation Temperature

-20℃ ~ + 50℃

Humidity

20% ~ 80%

Dimension

176*60*187mm

 Weight 1.8KG

2TB HDD DVR 4CH 4G GPS WIFI MDVR Vehicle Camera Remote Monitor Solution for School Bus2TB HDD DVR 4CH 4G GPS WIFI MDVR Vehicle Camera Remote Monitor Solution for School Bus



RCM-MDR7104 Accessories
Standard
Key*1 CD*1
Remote controller*1  6PIN power cable*1
16PIN output*1  24PIN alarm cable*1
VGA switching cable(6 pin)*1 USB cable*1
Audio & Video *4
Optional
4G Antenna WIFI Antenna
GPS Antenna
